COT7 Coilovers Shocks Fit For Civic 1988-1991 EC ED EE EF Rear Fork Type Bracket Model Only

Features:

- Racing damping oil and spring rates set for occasional track use and daily street use;

- With better damping setting, you will get better performance and enhanced handling;

- Pillow-Ball Top Mount Provides Sharp And Precise Handling

- 24 Clicks of Rebound Adjustments -- This allows you the ability to perfectly dial in your coilovers system.;

- Lowered height adjustment from 1" - 3" (depends on vehicle models)which allow lower center of gravity and also add a more aggressive stance;

- High strengh steel Cold-bent springs

- Adjustable pre-load spring tension to reduce the shaking motion to a certain extent;

- CNC machined Aluminum  top mounts and lockers-- - excellent strength, and weight-saving;

- Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable;

- All inserts come with fitted long rubber boots--- To protect the damper more well and be durable;

- Advanced Twin-Tube Technology ---provides excellent handling & control characteristics for most driving conditions

- Anti-Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts, matt finished surface

- Road Tested ---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.

- Clean room assembled---maintain higher level of accuracy and reliability.

Application:

Fit For Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9)

Fit For Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only (ED8\ED9\EE6\EE8\EF6\EF7\EF8)

Fit For Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only (EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3)

Fit For Honda CR-X del Sol 1992-1995 EG (EG1)

Fit For Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only (EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1)

Fit For Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model only

Fit For Acura Integra 1990-1993 DA DB fork type

Note:  for some vehicles, you will need sleeves and washers that are already included in our package.

Specifications:

- Front top mount: pillow ball

- Rear top mount: rubber

- Damping: 24 levels rebound damping adjustable

- Spring rate Front: 11 kg/mm (616 lbs/in)

- Spring rate Rear: 7 kg/mm (392 lbs/in)

- Coilover overall length Front: 345mm-390mm

- Coilover overall length Rear: 435mm-480mm

- Spring inner diameter : 70.5mm

- Spring length: 180mm

- Viscosity Index: 316

- Shock type: Twin tube

- Spring Preload: 7-10 mm

- Color: black body with grey spring

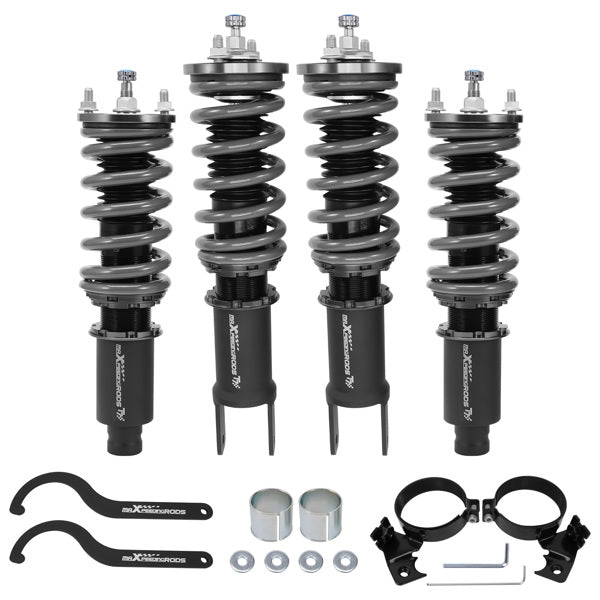

Package included:

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)

1 x Pair of wrenches for height adjustment

1 x Installation Instructions

Authority ID: MXR02FXSY（Very important, please do not delete）

Notice: California Prop 65 Warning
